Solar Smart MAX 3600-24V
Non-returnable
₹16,000.00
Choose Quantity
Product Details

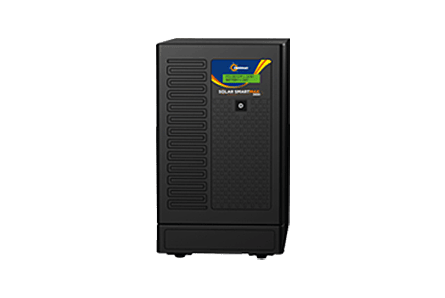

Eastman Solar Smart MAX MPPT 3600/24V
The Eastman Solar Smart MAX MPPT 3600/24V is a high efficiency solar PCU inverter specially designed for reliable solar power backup applications. Equipped with advanced MPPT charging technology and DSPIC based intelligent design, this inverter ensures maximum solar utilization, faster battery charging and stable power output for homes, offices and commercial applications.
It supports pure sine wave output for safe operation of sensitive electrical appliances such as LED TVs, computers, refrigerators, fans and other electronic devices. The inverter automatically switches between mains and backup mode for uninterrupted power supply.
Key Features
- Advanced MPPT solar charging technology
- DSPIC based intelligent design
- Pure sine wave output
- Automatic mains to backup switching
- Fast battery charging with CCCV charger
- Wide solar input voltage range
- High solar current support up to 72A
- Suitable for residential and commercial solar systems
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Eastman Solar Smart MAX MPPT 3600/24V |
| Capacity | 2500VA |
| Maximum Bulb Load | 2500VA |
| Battery Voltage | 24V |
| Product Warranty | 60 Months |
| VOC Range | 34V – 60V |
| Input Voltage (Wide Mode) | 120V – 300V |
| Input Voltage (Narrow Mode) | 170V – 270V |
| Output Voltage (Backup Mode) | 230V +10%, -15% |
| Output Frequency | 50Hz ±0.1Hz |
| Waveform | Pure Sine Wave |
| Battery Charging Current | 20A |
| Charger Type | CCCV |
| Overload / Short Circuit | 110% / 300% |
| Technology | DSPIC Based Design |
| Auto Reset Feature | Yes |
| Operating Temperature | 0°C – 45°C |
| Maximum PV Power | 2500VA |
| Maximum Solar Current | 72A ±3A |
