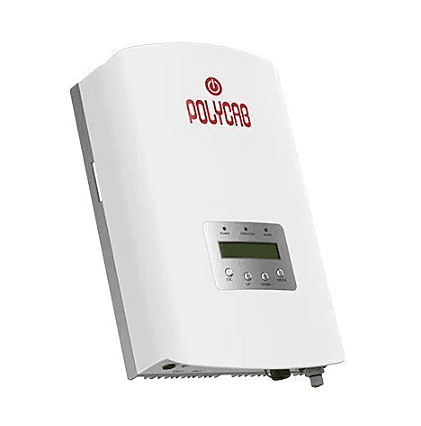

25 kW Polycab Grid Tie Solar Inverter
Non-returnable
High-performance 25kW three-phase on-grid solar inverter from Polycab, designed for commercial and industrial solar installations with advanced MPPT and smart monitoring.
Product Details
Specifications
| Polycab 25kW Solar Inverter (On-Grid GTI) | |
|---|---|
| General Details | |
| Brand | Polycab |
| Model | PSIT-25K-SM4 |
| Inverter Type | On-Grid (GTI - Grid Tie Inverter) |
| Rated Power | 25 kW |
| Phase | 3 Phase |
| Application | Commercial & Industrial Solar Systems |
| Performance | |
| Maximum Efficiency | Up to 98.4% |
| MPPT | 2 MPPT Trackers |
| Max Input Power | Up to 66 kW |
| Input (DC) | |
| Max DC Voltage | 1100 V |
| MPPT Voltage Range | 200V – 1000V |
| Start-up Voltage | ~250V |
| Output (AC) | |
| Rated AC Voltage | 380–415 V (3 Phase) |
| Output Current | ~39.8 A |
| Frequency | 50 / 60 Hz |
| Protection & Safety | |
| Anti-Islanding Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Surge Protection | Yes |
| Communication | |
| Interface | RS485 / WiFi (Optional) |
| Monitoring | Mobile App / Web Portal |
| Mechanical Details | |
| Cooling | Smart Air Cooling |
| IP Rating | IP66 (Outdoor Safe) |
| Operating Temperature | -25°C to 60°C |
| Weight | Approx. 20 kg |
| Additional Info | |
| HSN Code | 85044090 |
| Warranty | 5 Years (Extendable) |
General Information
- Inverter TypeOn-Grid
- ApplicationCommercial
Power & Electrical
- Battery Voltage12V
- PhaseThree Phase
- Power Capacity25 kW
Battery
- Battery TypeLead Acid
Solar
- Solar CompatibleYes
- TechnologyMPPT
