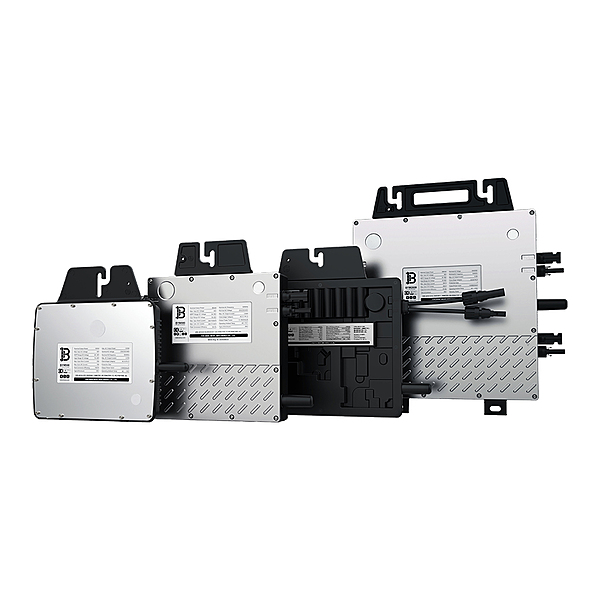

BENY Microinverter BYM500

🔌 Electrical (DC Input)

• Max DC Voltage: 60V
• MPPT Voltage Range: 24–50V
• Operating Voltage Range: 16–60V
• Max Input Current: 18A
• Max Short Circuit Current: 20A

⚡ AC Output

• Rated Power: 500W
• Peak Power: 520VA
• Output Voltage: 230V
• Voltage Range: 176–265V
• Frequency: 50/60 Hz
• Output Current: 2.27A

📊 Performance

• Max Efficiency: 96.5%
• MPPT Efficiency: >99.8%
• Power Factor: >0.99

🌡️ Environmental

• Operating Temperature: -40°C to +70°C
• Protection: IP67

📦 Physical

• Dimensions: 210 × 230 × 34 mm
• Weight: 2.39 kg

🔒 Other

• Transformer: High Frequency Transformer
• Connector: MC4
• Warranty: 12 Years
