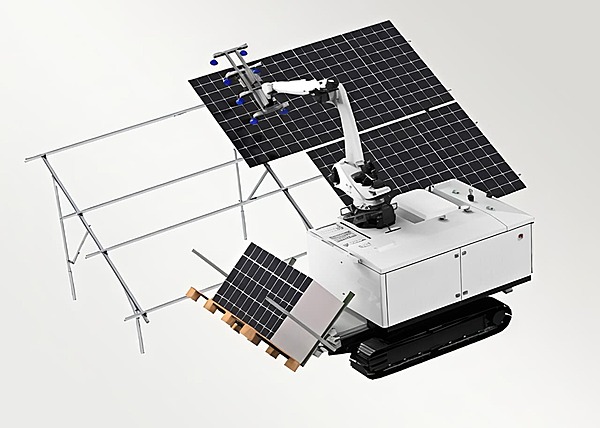

PV Module Fitting Robot
Tags:
High-precision, high-efficiency robotic solution for automated installation of PV modules (60-100 pcs/h) in utility-scale solar farms.
₹25,000,000.00
Choose Quantity
Product Details
PV Module Fitting Robot Specifications
Adaptive Capability & Performance
| Specification | Details |
|---|---|
| Module Type | Support mainstream size in market |
| Bracket Structure | 1P / 2P Tracker, Fixed Tilt |
| Application Scenario | Utility-scale PV power plant |
| Operating Temperature | -20℃ ~ 55℃ (Customizable below -20°C) |
| Storage Temperature | -25℃ ~ 65℃ |
| Max Wind Speed (Operating) | ≤ 12 m/s (Strong Breeze) |
| Gradeability | 30° (Hard Ground) |
| Turning Radius | 5500 mm |
| Control Mode | Local |
| Night Operation Capability | Support |
| Active Safety Protection | Support |
| Data Management | Support |
| Fitting Efficiency | 60–100 pcs/h |
| Fitting Tolerance | ± 0.5 mm |
| Power Type | Diesel-Hybrid / Electric |
General Specifications
| Specification | Details |
|---|---|
| Dimensions | 5600 mm × 2200 mm × 3400 mm |
| Weight | 8 t |
| Ingress Protection | IP65 (Key Components) |
| Chassis Type | Tracked Chassis |
| Remote Control Distance | 20 m |
| Load of Robotic Arm | 150 kg (Maximum) |
| Warranty Period | One year or 2000 hours (Whichever comes first) |
| Life Cycle | 10 years |
| Driving Speed | 2 km/h |
