800A Busduct
800A Outdoor Busduct (IP65) designed for efficient and safe high-capacity power distribution in industrial and commercial applications.
₹12,500.00 ₹25,000.00
Model No
KBB80-800A-IP65 Partcode
KBB80-800A-IP65 Choose Quantity
Product Details

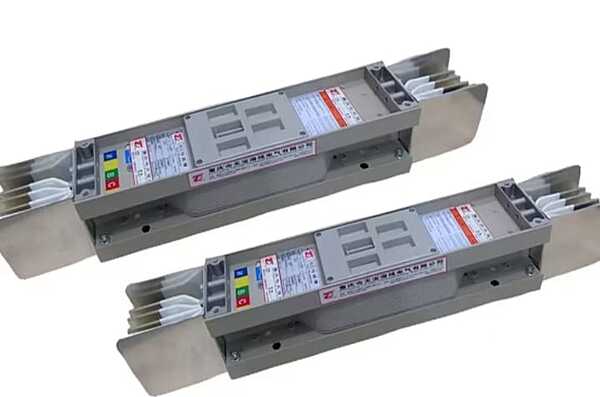

800A Busduct Straight Length – Outdoor (IP65)
The 800A Busduct (Busbar Trunking System) is a high-capacity electrical distribution solution designed for reliable and efficient power transmission in industrial and commercial environments. With an IP65 protection rating, it is suitable for outdoor installations and ensures protection against dust and water.
Ideal for heavy-duty applications requiring safe, compact, and scalable power distribution systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Rated Current | 800 Amps |
| Rated Voltage | Up to 415V AC |
| Frequency | 50/60 Hz |
| Phase | 3 Phase + Neutral (3P+N) |
| Conductor Material | Copper / Aluminium |
| Insulation Type | Sandwich / Air Insulated |
| Ingress Protection | IP65 (Outdoor) |
| Short Circuit Rating | 50kA / 65kA |
| Standard | IEC 61439-6 |
Physical Details
| Parameter | Details |
|---|---|
| Type | Straight Length Busduct |
| Standard Length | 3 Meter / 1 Meter |
| Enclosure | Powder Coated Metal Body |
| Mounting | Horizontal / Vertical |
| Cooling | Natural Air Cooling |
Key Features
| Feature | Description |
|---|---|
| High Capacity | Supports up to 800A current load |
| Outdoor Use | IP65 rating ensures weather resistance |
| Energy Efficient | Low power loss and voltage drop |
| Modular Design | Easy installation and expansion |
| Safety | Fully enclosed system for enhanced protection |
Applications
| Industry | Usage |
|---|---|
| Industrial Plants | Main power distribution |
| Commercial Buildings | Electrical distribution systems |
| Data Centers | Reliable power supply |
| Hospitals | Critical infrastructure power |
| Malls | Efficient power management |
Additional Information
| Parameter | Details |
|---|---|
| HSN Code | 85369090 |
| GST | 18% |
| Warranty | 12 Months |
| Unit | Meter / Length |
