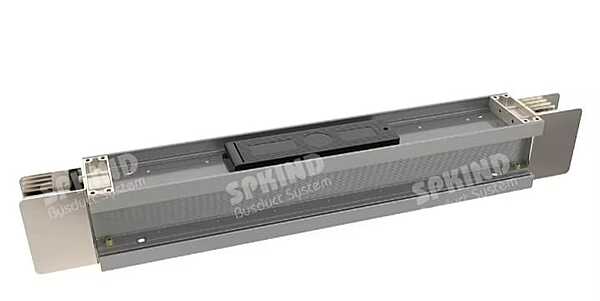

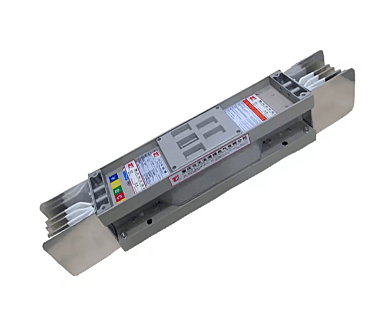

400A Busduct
400A Busduct system designed for efficient and safe power distribution in industrial and commercial installations.
₹11,900.00 ₹23,800.00
Model No
KBA40ED430 Partcode
KBA40ED430 Choose Quantity
Product Details
The 400A Busduct (Busbar Trunking System) is a highly efficient and reliable electrical power distribution solution designed for industrial and commercial applications. Engineered to meet international standards, it ensures safe, low-loss, and compact power transmission compared to traditional cable systems.
This system is ideal for applications requiring high current capacity, flexibility, and ease of installation. Its modular design allows quick extension, reduced maintenance, and long service life.
Technical Specifications
| Parameter | Details |
|---|---|
| Rated Current | 400 Amps |
| Rated Voltage | Up to 415V AC |
| Frequency | 50/60 Hz |
| Phase | 3 Phase + Neutral |
| Conductor Material | Copper / Aluminium |
| Insulation Type | Air Insulated / Sandwich Type |
| Ingress Protection | IP55 |
| Short Circuit Rating | 25kA / 50kA |
| Standard Compliance | IEC 61439-6 |
| Mounting Type | Horizontal / Vertical |
| Section Length | 1 Meter / 3 Meter |
Key Features
| Feature | Description |
|---|---|
| Compact Design | Space-saving construction compared to traditional cabling systems |
| High Efficiency | Low voltage drop and reduced energy losses |
| Modular Structure | Easy to extend, relocate, and customize |
| Safety | Enhanced protection with robust enclosure and insulation |
| Maintenance | Low maintenance and easy inspection |
Applications
| Industry | Usage |
|---|---|
| Industrial Plants | Main power distribution systems |
| Commercial Buildings | Power supply for lighting and HVAC systems |
| Data Centers | Reliable and scalable power distribution |
| Hospitals | Critical power infrastructure |
| Shopping Malls | Efficient electrical distribution |
Additional Information
| Parameter | Details |
|---|---|
| HSN Code | 85369090 |
| GST | 18% |
| Warranty | 12 Months (Standard) |
