FX Vertical Wind Turbine
Select Model Name
Select Rated Power

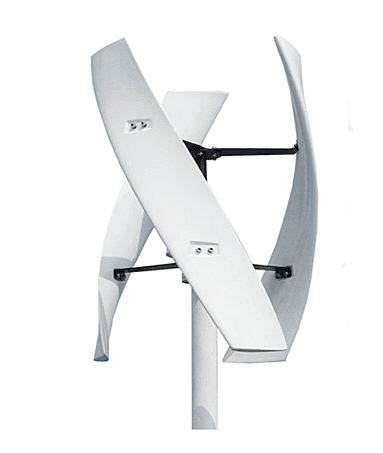

The FX RX Series Vertical Wind Turbines (RX-3000, RX-5000, RX-10000) are high-performance renewable energy generators designed for residential, commercial, and industrial applications. Featuring advanced 3-phase AC maglev generator technology and durable vertical blades, these turbines deliver efficient power generation, low start-up wind speed, stable operation, and reliable performance in hybrid solar-wind energy systems.
₹36,696.00 - ₹165,342.33
Choose Quantity
Product Details
FX RX-2000 Vertical Wind Turbine Specifications
| Parameter | Specification |
|---|---|
| Model | RX-2000 |
| Rated Power | 2000 W |
| Max Power | 2200 W |
| Rated Voltage (DC) | 12V / 24V / 48V |
| Start Wind Speed | 1.3 m/s |
| Rated Wind Speed | 10 m/s |
| Safe Wind Speed | 40 m/s |
| Wheel Diameter | 0.8 m |
| Blade Height | 1 m |
| Blades Quantity | 3 |
| Generator Type | 3 Phase AC Maglev Generator |
| Gross Weight | 19 kg |
FX RX-3000 Vertical Wind Turbine Specifications
| Parameter | Specification |
|---|---|
| Model | RX-3000 |
| Rated Power | 3000 W |
| Max Power | 3300 W |
| Rated Voltage (DC) | 48V / 96V / 120V |
| Start Wind Speed | 1.3 m/s |
| Rated Wind Speed | 11 m/s |
| Safe Wind Speed | 40 m/s |
| Wheel Diameter | 0.9 m |
| Blade Height | 1.32 m |
| Blades Quantity | 3 |
| Generator Type | 3 Phase AC Maglev Generator |
| Gross Weight | 58 kg |
FX RX-5000 Vertical Wind Turbine Specifications
| Parameter | Specification |
|---|---|
| Model | RX-5000 |
| Rated Power | 5000 W |
| Max Power | 5500 W |
| Rated Voltage (DC) | 24V / 48V / 96V |
| Start Wind Speed | 2 m/s |
| Rated Wind Speed | 12 m/s |
| Safe Wind Speed | 40 m/s |
| Wheel Diameter | 1.1 m |
| Blade Height | 1.64 m |
| Blades Quantity | 3 |
| Generator Type | 3 Phase AC Maglev Generator |
| Gross Weight | 68 kg |
FX RX-10000 Vertical Wind Turbine Specifications
| Parameter | Specification |
|---|---|
| Model | RX-10000 |
| Rated Power | 10000 W |
| Max Power | 11000 W |
| Rated Voltage | 48V / 96V / 120V / 230V / 380V |
| Start Wind Speed | 2 m/s |
| Rated Wind Speed | 12 m/s |
| Safe Wind Speed | 40 m/s |
| Rotor Diameter | 1.6 m |
| Blade Height | 2 m |
| Blades Quantity | 3 |
| Generator Type | 3 Phase AC Maglev Generator |
| Gross Weight | 95 kg |
