63A 4P MCB
Non-returnable
Tags:
Suitable for isolation, guarantees operational safety at the downstream Combine short-circuit and overload currents protection Avoids false insertion of cables & enhanced cable tear-off strength with serrated terminals Option to add auxiliaries, remote monitoring and residual current device ( Vigi add on block) Positive contact indication provides information of the physical contact openi
₹1,007.52 ₹2,015.04
Choose Quantity
Product Details
Specifications

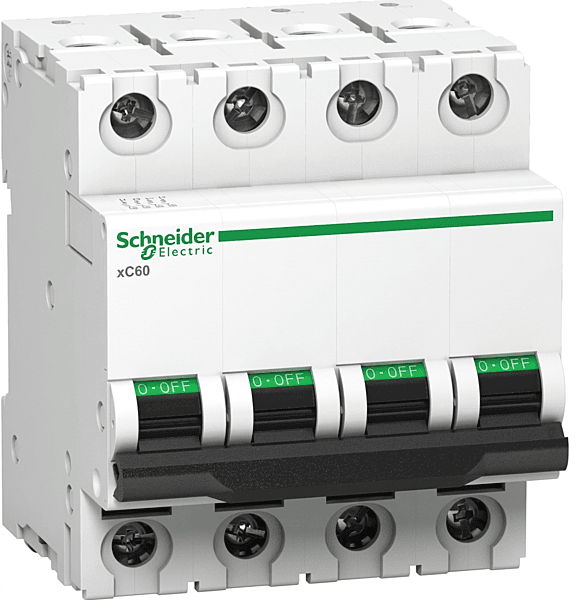

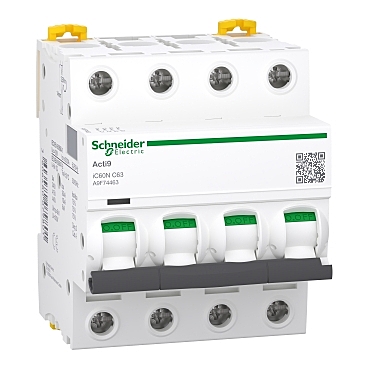

63A Four Pole MCB (FP MCB)
The 63 Amp Four Pole (FP) Miniature Circuit Breaker is designed to provide reliable protection for three-phase electrical systems. It safeguards circuits against overload and short-circuit faults and ensures safe isolation of all phases and neutral.
| Product Type | Miniature Circuit Breaker (MCB) |
|---|---|
| Pole Type | Four Pole (FP / 4P) |
| Current Rating | 63 Amp |
| Voltage Rating | 415V AC |
| Frequency | 50 / 60 Hz |
| Breaking Capacity | 6kA / 10kA (Model Dependent) |
| Trip Curve | B Curve / C Curve |
| Mounting Type | DIN Rail Mounting |
| Application | Industrial, Commercial, Three-Phase Systems |
| Protection Type | Overload & Short Circuit Protection |
| Material | High-grade, fire-resistant plastic housing |
| Standards | IS / IEC Certified (if applicable) |
| Operating Temperature | -5°C to +40°C |
Electrical Rating
- Current Rating40 A
- Voltage Rating415V AC
- Frequency50 / 60 Hz
- Trip CurveC Curve
- Number of Poles4P
Product Details
- Product TypeMCB
- Breaking Capacity36kA
