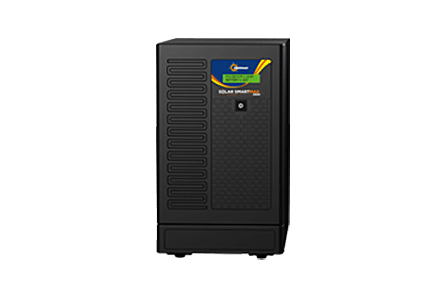

Eastman Solar smart max mppt 6600/96V
Non-returnable
Eastman Solar Smart MAX MPPT 6600/96V is a high performance pure sine wave solar PCU inverter designed for heavy duty residential, commercial and industrial solar applications. Powered by advanced MPPT technology and DSPIC microcontroller based intelligent design, it delivers efficient solar charging, stable backup output and reliable performance with 96V battery systems. The inverter supports high PV input capacity and ensures seamless switching between mains and backup supply.
₹49,000.00
Choose Quantity
Product Details
Eastman Solar Smart MAX MPPT 6600/96V
The Eastman Solar Smart MAX MPPT 6600/96V is an advanced solar PCU inverter engineered for efficient solar power management and uninterrupted backup performance. Built with DSPIC microcontroller based technology and intelligent MPPT charging, this inverter maximizes solar energy utilization and provides stable pure sine wave output for sensitive electrical appliances.
It is suitable for high load residential setups, offices, commercial establishments and industrial solar systems requiring high PV capacity and reliable battery backup support.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Eastman Solar Smart MAX MPPT 6600/96V |
| Capacity | 5500VA |
| Battery Voltage | 96V |
| VOC Range | 180V ~ 510V |
| Input Voltage (Wide Mode) | 120V ~ 290V |
| Input Voltage (Narrow Mode) | 170V ~ 270V |
| Output Voltage on Mains Mode | Same as Input |
| Output Voltage on Backup Mode | 225V |
| Output Frequency on Backup Mode | 50Hz |
| Switching Time (Mains ↔ Backup) | < 10 mS |
| Output Waveform on Mains Mode | Pure Sine Wave |
| Output Waveform on Backup Mode | Pure Sine Wave |
| Battery Charging Current | 13A / 18A |
| Charger Type | MPPT |
| PCU Overload / Short Circuit | 110% / 300% |
| Technology | DSPIC Micro Controller Based Design |
| Auto Reset Feature | Yes |
| Operating Temperature | 0°C – 45°C |
| Maximum PV Power | 7150W |
| Solar Current Maximum | 57Amp |
| Dimensions Without Packaging | 505 × 345 × 630 mm |
| Dimensions With Packaging | 685 × 530 × 830 mm |
