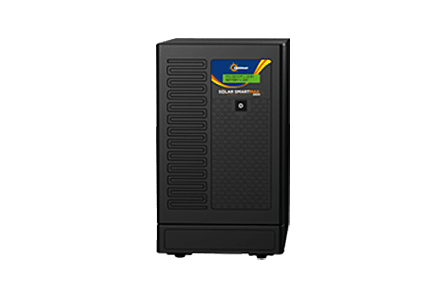

Eastman Solar smart max mppt 6100/48V
Non-returnable
Eastman Solar Smart MAX MPPT 6100/48V is a high efficiency pure sine wave solar PCU inverter designed for residential and commercial solar power systems. Equipped with advanced MPPT charging technology and DSPIC based intelligent design, it ensures maximum solar utilization, faster battery charging and reliable backup performance. The inverter supports 48V battery systems and delivers stable output with automatic mains to backup switching for uninterrupted power supply.
₹38,000.00
Choose Quantity
Product Details
Eastman Solar Smart MAX MPPT 6100/48V
The Eastman Solar Smart MAX MPPT 6100/48V is an advanced solar PCU inverter built for efficient solar energy management and uninterrupted backup power. With intelligent MPPT charging technology and DSPIC based design, this inverter provides higher solar efficiency, improved battery life and pure sine wave output suitable for sensitive appliances.
It is ideal for homes, offices, shops and commercial solar installations requiring reliable performance, automatic switching and high load handling capability.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Eastman Solar Smart MAX 6100-48V |
| Capacity | 5000VA |
| Maximum Bulb Load | 5000VA |
| Battery Voltage | 48V |
| Product Warranty | 60 Months |
| Transformer Warranty | NA |
| VOC Range | 75V – 160V |
| Input Voltage (Wide Mode) | 120V – 300V |
| Input Voltage (Narrow Mode) | 170V – 270V |
| Output Voltage on Mains Mode | Same as Input |
| Output Voltage on Backup Mode | 230V +10%, -15% |
| Output Frequency on Backup Mode | 50Hz ±0.1Hz |
| Switching (Mains ↔ Backup) | Automatic |
| Output Waveform on Mains Mode | Same as Input |
| Output Waveform on Backup Mode | Pure Sine Wave |
| Battery Charging Current | 20A |
| Charger Type | CCCV |
| PCU Overload / Short Circuit | 110% / 300% |
| Technology | DSPIC Based Design |
| Auto Reset Feature | Yes |
| Operating Temperature | 0°C – 45°C |
| Maximum PV Power | 5000VA |
| Solar Current (Max) | 66A ±3A |
