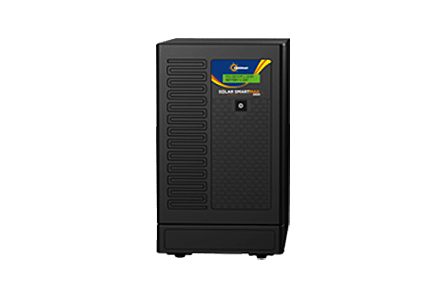

Eastman Solar smart max mppt 4100/48V
Non-returnable
₹27,000.00
Choose Quantity
Product Details
Eastman Solar Smart MAX MPPT 4100/48V
The Eastman Solar Smart MAX MPPT 4100/48V is a powerful and intelligent solar PCU inverter designed to provide efficient solar energy utilization and reliable backup performance. Built with advanced MPPT charging technology and DSPIC based intelligent control, this inverter ensures maximum solar conversion efficiency, faster battery charging and stable pure sine wave output.
This inverter is suitable for residential homes, offices, shops and commercial solar systems where uninterrupted power supply and efficient solar charging are essential. The automatic switching system provides seamless transition between mains and backup modes for smooth appliance operation.
Key Features
- Advanced MPPT solar charging technology
- DSPIC based intelligent design
- Pure sine wave output for sensitive appliances
- Automatic mains to backup switching
- Wide solar input voltage range
- Fast and efficient CCCV battery charging
- High overload and short circuit protection
- Ideal for residential and commercial solar applications
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Eastman Solar Smart MAX 4100-48V |
| Capacity | 3000VA |
| Maximum Bulb Load | 3000VA |
| Battery Voltage | 48V |
| Product Warranty | 60 Months |
| VOC Range | 75V – 160V |
| Input Voltage (Wide Mode) | 120V – 300V |
| Input Voltage (Narrow Mode) | 170V – 270V |
| Output Voltage on Mains Mode | Same as Input |
| Output Voltage on Backup Mode | 230V +10%, -15% |
| Output Frequency | 50Hz ±0.1Hz |
| Switching | Automatic |
| Waveform on Backup Mode | Pure Sine Wave |
| Battery Charging Current | 20A |
| Charger Type | CCCV |
| Overload / Short Circuit | 110% / 300% |
| Technology | DSPIC Based Design |
| Auto Reset Feature | Yes |
| Operating Temperature | 0°C – 45°C |
| Maximum PV Power | 3000VA |
| Solar Current (Max) | 40A ±3A |
