1600A Busduct
Non-returnable
1600A Busduct Straight Length with IP65 protection designed for high-capacity outdoor power distribution. Ideal for industrial and commercial applications requiring safe, efficient, and reliable electrical transmission.
₹18,500.00 ₹37,000.00
Model No
KBB160-1600A-IP65 Partcode
BD-1600A-IP65-SL Choose Quantity
Product Details

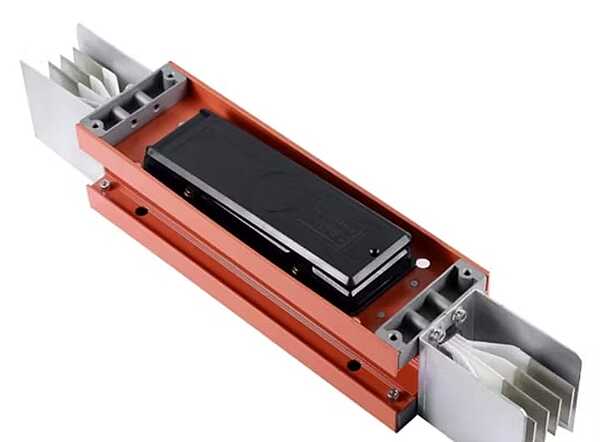

1600A Busduct Straight Length – Outdoor (IP65)
The 1600A Busduct (Busbar Trunking System) is a high-capacity, heavy-duty electrical power distribution solution designed for large-scale industrial and commercial applications. Built with robust construction and IP65 protection, it ensures reliable performance even in harsh outdoor environments.
Designed for high-load applications with maximum safety, efficiency, and long operational life.
Technical Specifications
| Parameter | Details |
|---|---|
| Rated Current | 1600 Amps |
| Rated Voltage | Up to 415V AC |
| Frequency | 50/60 Hz |
| Phase | 3 Phase + Neutral (3P+N) |
| Conductor Material | Copper / Aluminium |
| Insulation Type | Sandwich / Air Insulated |
| Ingress Protection | IP65 (Outdoor Use) |
| Short Circuit Rating | 65kA / 100kA |
| Standard Compliance | IEC 61439-6 |
Physical Details
| Parameter | Details |
|---|---|
| Type | Straight Length Busduct |
| Standard Length | 3 Meter / 1 Meter |
| Enclosure | Powder Coated CRCA / Aluminium Housing |
| Mounting | Horizontal / Vertical |
| Cooling | Natural Air Cooling |
Key Features
| Feature | Description |
|---|---|
| High Current Capacity | Handles up to 1600A load efficiently |
| Outdoor Protection | IP65 ensures resistance to dust and water |
| Energy Efficient | Low voltage drop and minimal power loss |
| Modular Design | Easy installation, expansion, and maintenance |
| Durability | Strong mechanical structure for long life |
Applications
| Industry | Usage |
|---|---|
| Industrial Plants | Main LT power distribution |
| Commercial Buildings | Power supply for HVAC & utilities |
| Data Centers | High reliability power systems |
| Hospitals | Critical power infrastructure |
| Infrastructure Projects | Outdoor power distribution networks |
Additional Information
| Parameter | Details |
|---|---|
| HSN Code | 85369090 |
| GST | 18% |
| Warranty | 12 Months |
| Unit | Meter / Length |
