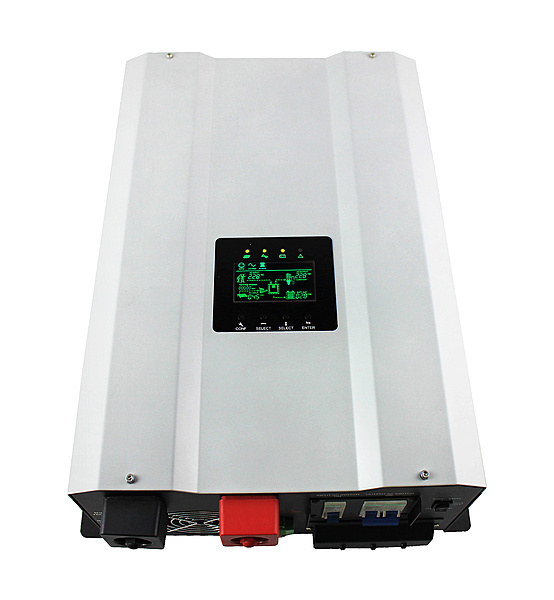

ZLPOWER GS Series Off-Grid Hybrid Inverter (1kW–12kW)
Select Power Capacity
ZLPOWER GS Series is a reliable off-grid and hybrid solar inverter range from 1kW to 12kW, featuring low-frequency transformer design, wide MPPT range, and high efficiency up to 98%. Ideal for residential and small commercial solar systems.
₹48,000.00 - ₹80,000.00
Choose Quantity
Product Details
ZLPOWER GS Series Off-Grid Hybrid Solar Inverter (1kW–12kW)
| General Information | |
|---|---|
| Manufacturer | Shenzhen Zlpower Electronics Co., Ltd. |
| Type | Off-Grid / Hybrid |
| Technology | Low Frequency Transformer |
| Power Range | 1 kW – 12 kW |
| Operating Temperature | -15°C to +60°C |
| Cooling | Fan |
| Humidity | 5–95% |
| Display | LCD + LED |
| Electrical Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | GS1000 | GS2000 | GS3000 | GS4000 | GS5000 | GS6000 | GS8K | GS10K | GS12K |
| Power | 1 kW | 2 kW | 3 kW | 4 kW | 5 kW | 6 kW | 8 kW | 10 kW | 12 kW |
| MPPT Voltage Range | 25–75 V | 25–75 V | 25–75 V | 25–75 V | 25–75 V | 55–145 V | 55–145 V | 55–145 V | 55–145 V |
| Max AC Power | Same as Rated Power | ||||||||
| Output Voltage Range | 85 – 263 V | ||||||||
| Nominal Voltage | 120 / 230 V | ||||||||
| Frequency | 50 / 60 Hz | ||||||||
| Frequency Range | 41 – 64 Hz | ||||||||
| Power Factor | 1 | ||||||||
| Euro Efficiency | 98% | ||||||||
| Mechanical Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | GS1000 | GS2000 | GS3000 | GS4000 | GS5000 | GS6000 | GS8K | GS10K | GS12K |
| Dimensions | 190×400×530 mm | 204×416×627 mm | |||||||
| Weight | 30 kg | 30 kg | 30 kg | 30 kg | 35.5 kg | 39 kg | 39 kg | 58.5 kg | 66.5 kg |
| Noise Level | < 60 dB(A) | ||||||||
| Protection Features | |
|---|---|
| Overload Protection, Overvoltage Protection, Surge Protection |
| Commercial Details | |
|---|---|
| Warranty | 2 Years |
| Price Range | From ₹6.97/Wp |
| Region | China |
Key Features
- Low-frequency transformer for high reliability
- Wide MPPT voltage range
- High efficiency up to 98%
- Supports hybrid and off-grid applications
- Robust design for long-term operation
