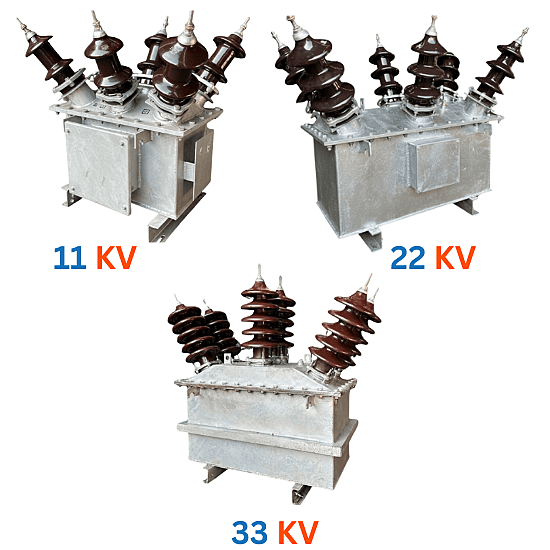

11 kV / 22 kV / 33 kV CTPT Unit
₹62,000.00 - ₹70,000.00
Choose Quantity
Product Details
CTPT Unit Specifications
I. Inventory & SKU Details
| Voltage | Item Name | SKU |
|---|---|---|
| 11 kV | 11kV CTPT Metering Unit (250/5A, 0.2s) | MTU-11KV-250A-02S |
| 22 kV | 22kV CTPT Metering Unit (250/5A, 0.2s) | MTU-22KV-250A-02S |
| 33 kV | 33kV CTPT Metering Unit (250/5A, 0.2s) | MTU-33KV-250A-02S |
II. Technical Attributes
| Attribute Name | 11 kV Unit (Value) | 22 kV Unit (Value) | 33 kV Unit (Value) |
|---|---|---|---|
| Product Type | CTPT Metering Unit | CTPT Metering Unit | CTPT Metering Unit |
| Rated Voltage (kV) | 11 kV | 22 kV | 33 kV |
| CT Primary Ratio (A) | 250 A | 250 A | 250 A |
| CT Secondary Ratio (A) | 5 A | 5 A | 5 A |
| Overall Ratio | 250/5 A | 250/5 A | 250/5 A |
| Accuracy Class | 0.2s | 0.2s | 0.2s |
| Application | Revenue Metering / Protection | Revenue Metering / Protection | Revenue Metering / Protection |
