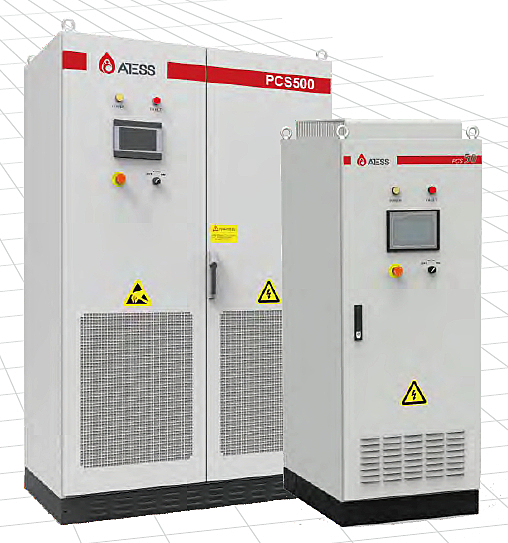

ATESS PCS Series Battery Inverter (100kW–630kW)
Select Power Capacity
ATESS PCS Series is a high-capacity bi-directional battery inverter designed for large-scale energy storage systems, offering high efficiency up to 98.5% and seamless operation in both on-grid and off-grid applications.
₹1,500,000.00 - ₹2,700,000.00
Choose Quantity
Product Details
ATESS PCS Series Battery Inverter (100kW–630kW)
| General Information | |
|---|---|
| Manufacturer | Shenzhen Atess Power Technology Co., Ltd. |
| Type | Hybrid / Battery Inverter (PCS) |
| Application | Energy Storage / Industrial |
| Efficiency | 97.1% – 98.5% |
| Protection Class | IP20 |
| Operating Temperature | -25°C to +55°C |
| Cooling | Fan |
| Humidity | 0–95% |
| Max Altitude | 6000 m |
| Noise Level | < 65 dB(A) |
| Display | LCD (Touchscreen) |
| Interface | RS485 |
| Electrical Specifications | ||||
|---|---|---|---|---|
| Model | PCS100 | PCS250 | PCS500 | PCS630 |
| Nominal Power | 100 kW | 250 kW | 500 kW | 630 kW |
| Max AC Power | 110 kW | 275 kW | 550 kW | 693 kW |
| Rated AC Voltage | 400 V | |||
| Output Voltage Range | 360 – 440 V | |||
| Rated AC Current | 144 A | 361 A | 722 A | 909 A |
| Frequency | 50 / 60 Hz | |||
| Frequency Range | 45 – 65 Hz | |||
| Power Factor | 0.8 | |||
| THD | < 3% | |||
| Max Efficiency | 97.1% | 97.3% | 98.5% | 98.5% |
| Mechanical Specifications | ||||
|---|---|---|---|---|
| Model | PCS100 | PCS250 | PCS500 | PCS630 |
| Dimensions | 1890×1100×850 mm | 2080×1600×850 mm | 1900×1200×800 mm | 1900×1200×800 mm |
| Weight | 820 kg | 1465 kg | 870 kg | 900 kg |
Key Features
- Bi-directional battery inverter system
- Supports grid, off-grid & diesel generator
- High efficiency up to 98.5%
- Industrial-grade design for large projects
- Touchscreen LCD interface
