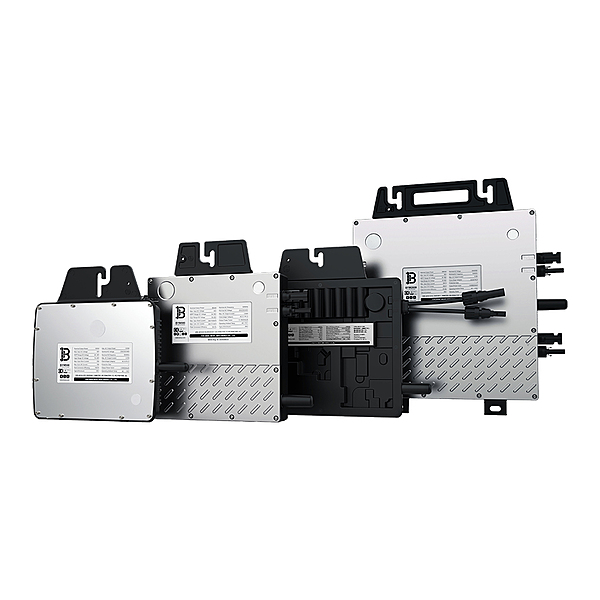

BENY Microinverter BYM1200

BENY Microinverter BYM1200 (1200W)

The BYM1200 microinverter is designed for high-performance solar energy conversion at the module level. It ensures maximum power output from each solar panel using advanced MPPT technology, making it ideal for residential rooftop and small-scale solar installations.

Key Features:

- Module-level MPPT for optimized energy generation

- High efficiency up to 96.5%

- IP67 waterproof and dustproof design

- Stable output with wide voltage range

- Real-time monitoring capability

- Compact, lightweight, and easy installation

- 12-year manufacturer warranty

Technical Specifications:

DC Input:

- Max DC Voltage: 60 V

- MPPT Voltage Range: 24–50 V

- Connector Type: MC4

AC Output:

- Rated Power: 0.6 kW

- Output Voltage Range: 176–265 V

- Rated Voltage: 230 V

- Rated Current: 2.73 A

- Frequency Range: 46.5–62 Hz

- Frequency: 50 / 60 Hz

Performance:

- Maximum Efficiency: 96.5%

Environmental:

- Operating Temperature: -40°C to +70°C

- Protection Class: IP67

Physical:

- Dimensions: 210 × 230 × 34 mm

- Weight: 2.39 kg

Other:

- Transformer: High Frequency Transformer

- Warranty: 12 Years

The BYM1200 microinverter is an excellent choice for efficient and flexible solar systems, especially where panel-level performance optimization is required.
