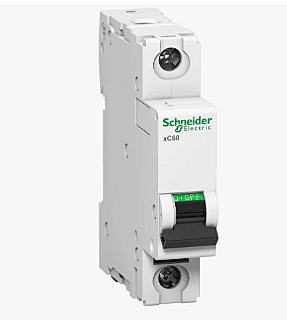

10A 1P MCB
Non-returnable
Tags:
10A SP MCB is an electrical safety device that provides protection against overload and short-circuit conditions. It is suitable for single-phase circuits and is widely used in residential, commercial, and light industrial applications.
₹116.10
Choose Quantity
Product Details
Specifications
| Product Specifications | |
|---|---|
| Brand / Range | Acti9 |
| Product Name | Acti9 C60H-DC |
| Product Type | Miniature Circuit Breaker (MCB) |
| Device Application | Distribution |
| Pole Type | 1P |
| Number of Protected Poles | 1 |
| Rated Current (In) | 10 A at 25°C |
| Network Type | DC |
| Trip Unit Technology | Thermal-Magnetic |
| Trip Curve | C Curve |
| Rated Operational Voltage (Ue) | 250 V DC |
| Breaking Capacity (Icu) | 20 kA at 110 V DC 10 kA at 220 V DC 6 kA at 250 V DC |
| Rated Service Breaking Capacity (Ics) | 15 kA at 110 V DC 7.5 kA at 220 V DC 4.5 kA at 250 V DC |
| Rated Insulation Voltage (Ui) | 500 V DC |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Mounting Type | 35 mm DIN Rail |
| Control Type | Toggle |
| Local Indication | ON / OFF Indicator |
| Mechanical Durability | 20,000 Cycles |
| Electrical Durability | 3,000 Cycles |
| Colour | White |
| Net Weight | 0.128 kg |
| Operating Temperature | -25°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Standards | IEC 60947-2 / EN 60947-2 |
| Warranty | 18 Months |
Electrical Rating
- Current Rating10 A
- Voltage Rating415V AC
- Frequency50 / 60 Hz
- Trip CurveC Curve
- Number of Poles1P
Product Details
- Product TypeMCB
- ColorWhite
- Breaking Capacity10kA
Material & Build
- MaterialPolycarbonate
