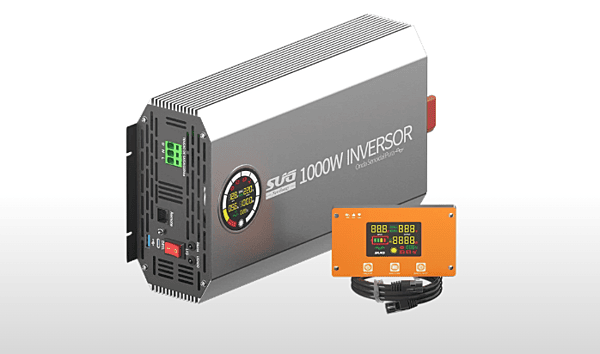

SUG Off-Grid Pure Sine Wave Inverter (SGPF Series)
Tags:
Select Model
Select Power
Select Types
Off-grid pure sine wave inverter with high-frequency transformer, designed for stable performance and efficient power conversion. Suitable for residential and small commercial solar systems.
₹5,200.00 - ₹10,100.00
Choose Quantity
Product Details
SUG Off-Grid Pure Sine Wave Inverter (SGPF Series)
| General Information | |
|---|---|
| Type | Off-Grid Inverter |
| Technology | High Frequency Transformer |
| Phase | Single Phase |
| Efficiency | 93% |
| Protection Class | IP21 |
| Operating Temperature | -10°C to +50°C |
| Cooling | Fan |
| Display | LCD |
| Interface | RS485, USB, Bluetooth |
| Electrical Specifications | ||||
|---|---|---|---|---|
| Model | SGPF-1000W | SGPF-1500W | SGPF-2000W | SGPF-3000W |
| Nominal Power | 1 kW | 1.5 kW | 2 kW | 3 kW |
| Max AC Power | 2 kW | 3 kW | 4 kW | 6 kW |
| Max DC Power | 1 kW | 1.5 kW | 2 kW | 3 kW |
| Nominal DC Voltage | 12 V | |||
| AC Voltage Range | 100 – 240 V | |||
| Nominal AC Voltage | 100 / 110 / 220 V | |||
| Frequency | 50 / 60 Hz | |||
| Power Factor | 1 | |||
| Total Harmonic Distortion (THD) | < 3% | |||
| Mechanical Specifications | ||||
|---|---|---|---|---|
| Model | SGPF-1000W | SGPF-1500W | SGPF-2000W | SGPF-3000W |
| Dimensions (H × W × D) | 282 × 144 × 73 mm | 312 × 144 × 73 mm | 337 × 163 × 81 mm | 377 × 163 × 81 mm |
| Weight | 2 kg | 2.4 kg | 3.2 kg | 4.25 kg |
| Protection Features | |
|---|---|
| Short Circuit Protection, Overload Protection, Overvoltage Protection, Overcurrent Protection, Overtemperature Protection, Residual Current Device (RCD), Reverse Polarity Protection |
| Commercial Details | |
|---|---|
| Product Warranty | 1 Year |
| Minimum Order Quantity | 1 Piece |
| Lead Time | 3 Days (1–199 pcs), 25 Days (200+ pcs) |
| Price Range | From ₹1.65/Wp |
| Region | China |
Key Features
- Pure sine wave output
- Full load stable operation
- Soft start function
- Compact size, easy installation
- High efficiency up to 93%
- Advanced protection system
