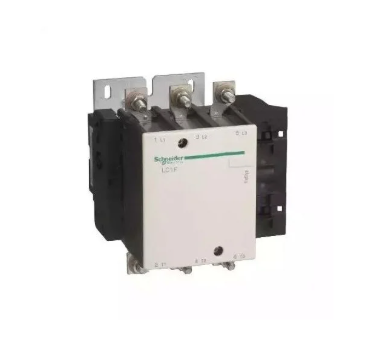

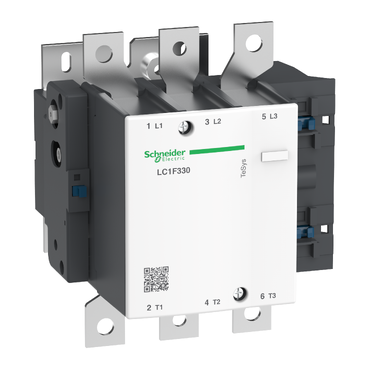

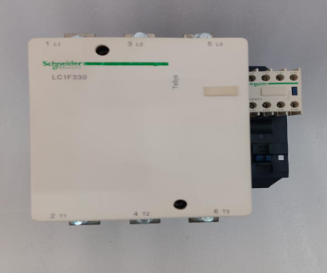

Schneider Electric TeSys F Contactor 3P 330A (Model: LC1F330)
Choose Quantity
Schneider Electric TeSys F Contactor LC1F330 - Product Specifications
| Brand | Schneider Electric |
|---|---|
| Series | TeSys F |
| Model Number | LC1F330 |
| Product Type | Power Contactor |
| Number of Poles | 3 Pole (3P) |
| Rated Current | 330 A |
| Operational Category | AC-3 |
| Rated Operational Voltage | Up to 690V AC |
| Control Coil Voltage | Varies (Depends on Coil Type) |
| Frequency | 50 / 60 Hz |
| Auxiliary Contacts | 3 NO (Normally Open) |
| Mounting Type | Panel / DIN Rail Mounting |
| Width | 21.3 cm |
| Height | 20.6 cm |
| Depth | 21.9 cm |
| Weight | Approx. 9.5 kg |
| Body Material | High-grade Insulated Plastic & Metal |
| Protection Rating | IP20 |
| Operating Temperature | -5°C to +60°C |
| Electrical Durability | Up to 1 Million Operations |
| Mechanical Durability | Up to 10 Million Operations |
| Certifications | IEC, CE, UL, CSA |
| Application Area | Motor Control, Industrial Automation, Power Switching |
| Typical Uses | Compressors, Pumps, HVAC, Conveyors, Heavy Motors |
| Country of Origin | As per Manufacturing Batch |
| Warranty | Manufacturer Standard Warranty |
Product Description
The Schneider Electric TeSys F LC1F330 is a high-performance industrial power contactor designed for controlling heavy electrical loads and high-power motors. It is built for reliable switching, long operational life, and superior safety in demanding industrial environments.
This contactor supports AC-3 motor switching applications and is widely used in manufacturing plants, HVAC systems, power distribution panels, water pumping stations, and automation systems. Its robust construction ensures minimal maintenance and stable performance over long periods.
The TeSys F series is known for excellent electrical insulation, low power consumption, and compatibility with various auxiliary accessories, making it a flexible solution for modern control panels.
Key Advantages
- High current handling capacity (330A)
- Long mechanical and electrical life
- Compact and durable design
- Easy installation and maintenance
- Global safety certifications
- Reliable performance in harsh environments
